Marine Wire Rope Luffing Crane for Reliable Marine Lifting Operations

Reliable marine lifting equipment is essential for safe and efficient cargo handling, material transfer, and offshore operations. On ships and offshore structures, lifting equipment must operate under challenging conditions, including vessel movement, changing loads, wind, humidity, and saltwater exposure. A properly designed marine crane helps improve lifting efficiency while supporting safe and controlled cargo handling.

As an important component of marine deck machinery, marine wire rope luffing cranes are designed to handle lifting operations that require controlled boom movement and flexible cargo positioning. By using a wire rope system to control the boom's luffing movement, this type of crane can adjust the boom angle to accommodate different lifting heights, working radii, and operational requirements.

Xifan Marine Wire Rope Luffing Cranes are developed for shipyards, shipowners, marine equipment suppliers, and offshore projects requiring dependable lifting solutions. With project-oriented engineering, practical structural design, and customizable configurations, Xifan Marine supports a variety of marine lifting requirements based on customer specifications and applicable technical standards.

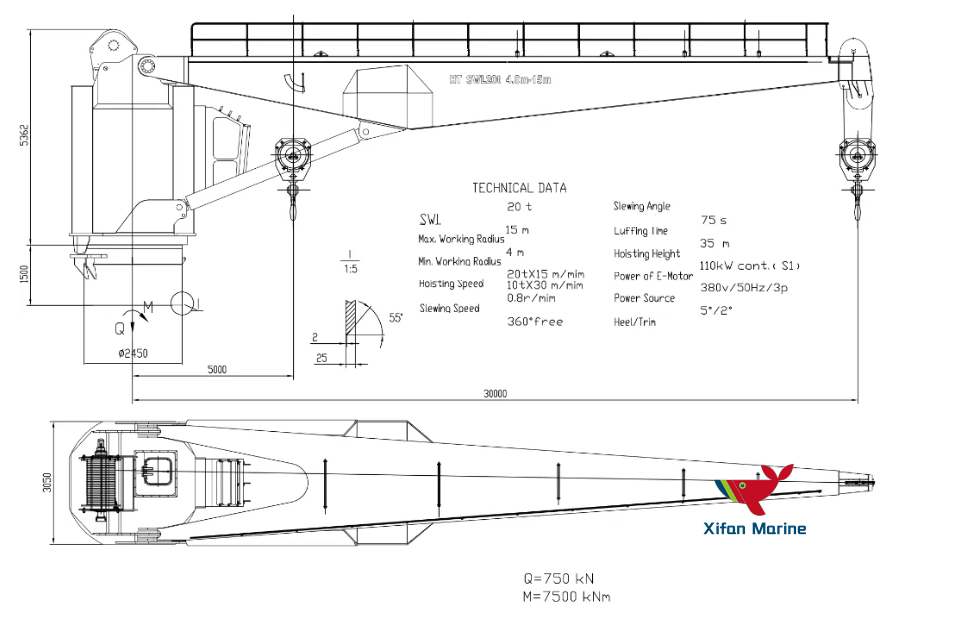

Xifan Marine Wire Rope Luffing Crane

Marine Wire Rope Luffing Crane

A marine wire rope luffing crane is a type of shipboard lifting equipment that uses wire ropes and a luffing mechanism to raise or lower the boom. Adjusting the boom angle allows the crane to change its working radius and position loads within its designated operating range.

Depending on the design, the crane may include a supporting structure, boom, wire rope system, hoisting mechanism, luffing winch, slewing mechanism, and associated control and safety systems.

The crane configuration should be selected according to the vessel layout, required safe working load, lifting height, working radius, operating conditions, and project specifications.

Xifan Marine provides marine crane manufacturing solutions based on customer requirements, approved technical drawings, and project-specific lifting arrangements.

How Does a Marine Wire Rope Luffing Crane Work?

A marine wire rope luffing crane operates through coordinated lifting and boom-angle adjustment mechanisms.

During operation, the hoisting system raises or lowers the load using the designated lifting wire rope. The luffing system adjusts the boom angle through a wire rope arrangement and its associated winch or mechanism, allowing the operator to position the load at the required working radius.

Where the design includes a slewing mechanism, the crane can also rotate within its specified operating range to serve different cargo handling positions.

The coordination of hoisting, luffing, and slewing functions enables the crane to perform a variety of marine lifting tasks. Actual operating procedures and permissible movements depend on the crane design, control system, rated load chart, and approved operating instructions.

When specifying a marine wire rope luffing crane, customers should consider the safe working load (SWL), maximum and minimum working radius, lifting height, boom length, wire rope configuration, hoisting speed, luffing range, slewing angle, power supply, installation arrangement, and applicable classification requirements.

Why Choose Xifan Marine Wire Rope Luffing Cranes?

Marine cranes operate in demanding environments where corrosion, humidity, vibration, dynamic vessel movement, and repeated loading can affect equipment performance. Appropriate structural design, suitable materials, reliable wire rope systems, and properly engineered safety devices are important factors when selecting marine lifting equipment.

Xifan Marine focuses on practical marine equipment manufacturing, project-specific engineering requirements, and dimensional consistency to support shipbuilding, vessel maintenance, and offshore lifting applications.

Key Advantages Include:

• Designed for marine cargo handling and lifting applications.

• Wire rope luffing arrangement for controlled boom-angle adjustment.

• Configurations available according to specified lifting requirements.

• Safe working load and working radius selected according to project needs.

• Structural design based on approved technical specifications.

• Material and corrosion protection options suitable for the intended marine environment.

• Hoisting, luffing, and slewing configurations subject to crane design.

• Suitable for newbuilding, repair, conversion, and replacement projects.

• Custom manufacturing based on customer drawings and technical specifications.

• Engineering coordination for installation dimensions and operating requirements.

Technical Parameters for Marine Wire Rope Luffing Cranes

Final crane capacity, working radius, lifting height, wire rope specifications, operating speeds, power requirements, safety devices, and other technical details must be confirmed against the approved design, load chart, project specifications, and applicable classification requirements.

Applications of Marine Wire Rope Luffing Cranes

Marine wire rope luffing cranes can be used in suitable lifting arrangements across a wide range of marine and offshore applications.

Typical applications include:

• Commercial vessels

• Cargo ships

• General cargo vessels

• Bulk carriers

• Container vessels, where suitable

• Offshore supply vessels

• Workboats and service vessels

• Marine construction vessels

• Offshore platforms and support structures

• Shipyards and ship repair facilities

• Port and terminal operations

• Marine equipment installation and maintenance projects

The appropriate crane configuration depends on the intended lifting task, required working radius, vessel structure, deck space, power availability, and operating environment. Xifan Marine can review customer drawings and technical specifications to evaluate a suitable manufacturing configuration.

Marine Wire Rope Luffing Crane – FAQ

Q1: What is a marine wire rope luffing crane used for?

A marine wire rope luffing crane is used for shipboard and offshore lifting operations. It uses a wire rope luffing mechanism to adjust the boom angle and working radius, allowing loads to be positioned within the crane's approved operating range.

Q2: How does a wire rope luffing crane adjust its working radius?

The luffing mechanism changes the boom angle through a wire rope system and its associated operating mechanism. Raising or lowering the boom changes the horizontal distance between the crane and the load, subject to the crane's design and load chart.

Q3: How do I select the right marine wire rope luffing crane?

Selection should consider the required safe working load, working radius, lifting height, boom length, luffing range, hoisting speed, power supply, installation dimensions, vessel operating conditions, and applicable classification requirements.

Q4: Does Xifan Marine supply marine wire rope luffing cranes?

Xifan Marine can review project requirements for marine lifting equipment and provide manufacturing solutions subject to technical evaluation, drawing confirmation, and agreed specifications.

Q5: Can marine wire rope luffing cranes be customized?

Customization can be evaluated according to customer drawings, lifting capacity, working radius, boom configuration, power supply, control requirements, surface protection, and installation conditions. Any design changes must be reviewed and approved before production.
