Reliable mooring equipment is essential for the safe operation of ships and offshore vessels. During mooring operations, ropes and mooring lines are subjected to tension, friction, and changing loads caused by vessel movement, wind, waves, and currents. Properly designed marine chocks help guide mooring lines along the intended path while supporting reliable rope handling on board.

As an important component of marine deck equipment, DIN 81915 chocks Type B and D are designed for rope guiding and mooring applications on ships and other marine structures. Installed at suitable positions on the vessel's deck or bulwark, these chocks provide a controlled passage for mooring lines and help reduce interference between the ropes and surrounding structures.

Xifan Marine DIN 81915 Chocks Type B and D are manufactured for shipyards, shipowners, marine equipment suppliers, and offshore projects requiring dependable mooring fittings. With practical construction, dimensional accuracy, and customizable manufacturing options, Xifan Marine supports a range of marine equipment requirements based on applicable standards and customer specifications.

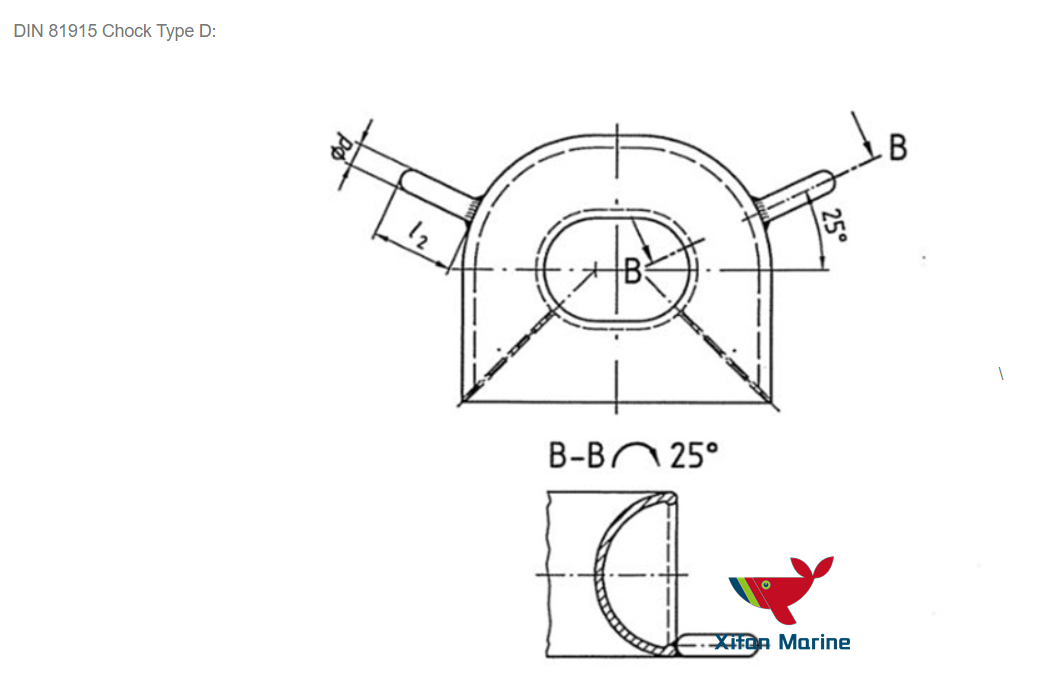

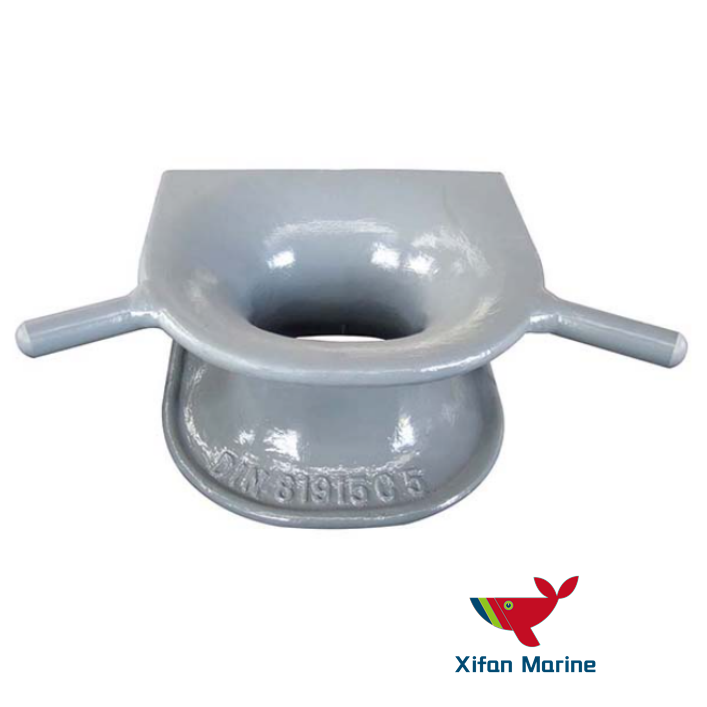

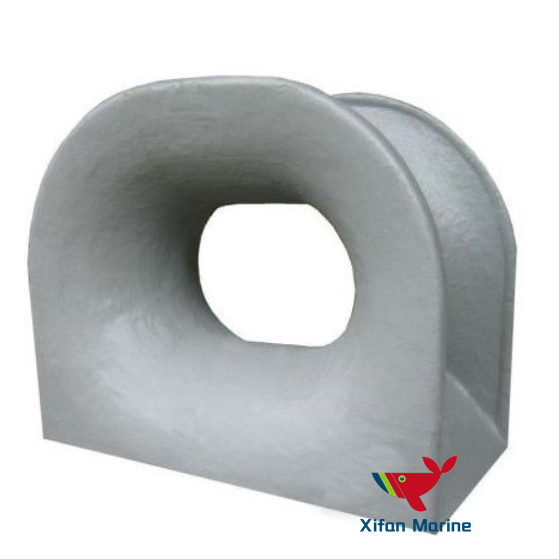

DIN 81915 Chocks Type B and D

DIN 81915 is a standard designation associated with marine chocks. Type B and Type D identify different chock configurations intended for specific installation and rope-leading arrangements.

The appropriate type should be selected according to the applicable standard drawing, mooring line direction, deck or bulwark arrangement, installation dimensions, and project requirements.

Xifan Marine provides marine chock manufacturing solutions for customers requiring specified configurations, dimensions, materials, and surface finishes.

How Do DIN 81915 Chocks Work?

Marine chocks are installed at designated points along the mooring line route, such as suitable deck, bulwark, or other structural locations, depending on the design.

During mooring operations, ropes pass through the chock opening as the vessel is secured to a quay, berth, or another marine structure. The chock guides the rope along its intended route and helps prevent direct contact with unsuitable deck edges or surrounding structures.

The chock's configuration and installation position influence the rope lead, clearance, and contact conditions. Correct selection and installation are therefore important for maintaining an effective mooring arrangement.

When specifying DIN 81915 Type B and D chocks, customers should consider the required type, nominal dimensions, rope size, expected line direction, mounting arrangement, material, surface protection, and applicable project or classification requirements.

Why Choose Xifan Marine DIN 81915 Chocks?

Marine deck fittings operate in demanding environments where saltwater, humidity, corrosion, friction, and repeated mooring loads can affect long-term service performance. Suitable materials, correct dimensions, sound manufacturing practices, and appropriate protective coatings are important considerations when selecting marine chocks.

Xifan Marine focuses on practical marine equipment manufacturing, dimensional consistency, and project-specific requirements to support shipbuilding, vessel maintenance, and replacement applications.

Key Advantages Include:

• Designed for marine mooring and rope guiding applications.

• Type B and Type D configurations available according to specified requirements.

• Suitable for installation on appropriate vessel deck or bulwark structures.

• Manufactured to specified dimensions and drawings.

• Material options available according to project requirements.

• Protective surface treatment suitable for the intended marine environment.

• Suitable for commercial ships and offshore applications.

• Available for newbuilding, repair, conversion, and replacement projects.

• Custom manufacturing based on customer drawings and technical specifications.

• Support for project-specific installation and dimensional requirements.

Technical Parameters for DIN 81915 Chocks Type B and D

Final dimensions, material grades, surface treatment, and other technical details should be confirmed against the applicable DIN 81915 edition, approved drawings, project specifications, and relevant classification requirements.

Applications of DIN 81915 Chocks Type B and D

DIN 81915 marine chocks are intended for suitable rope-guiding and mooring arrangements across a range of marine applications.

Typical applications include:

• Commercial vessels

• Cargo ships

• Container ships

• Bulk carriers

• Tankers

• General cargo vessels

• Fishing vessels

• Tugboats and workboats

• Passenger ships

• Offshore supply vessels

• Marine construction vessels

• Ports and terminals

• Shipyards and vessel repair projects

The appropriate chock type depends on the required rope lead, installation location, dimensional requirements, and vessel design. Xifan Marine can review customer drawings and specifications to help identify a suitable manufacturing configuration.

DIN 81915 Chocks Type B and D – FAQ

Q1: What are DIN 81915 chocks used for?

DIN 81915 chocks are marine deck fittings used to guide mooring ropes through designated openings in a vessel's mooring arrangement.

Q2: What is the difference between Type B and Type D chocks?

Type B and Type D refer to different configurations under the specified standard. Their exact geometric and installation differences should be checked against the applicable DIN 81915 drawings and edition before ordering.

Q3: How do I select the correct DIN 81915 chock?

Selection should consider the required type, standard dimensions, rope lead, mounting position, material, surface treatment, and vessel-specific requirements. Customer drawings are helpful for confirming the correct configuration.

Q4: Does Xifan Marine supply DIN 81915 Type B and D chocks?

Xifan Marine can review requirements for Type B and Type D marine chocks and provide manufacturing solutions subject to drawing, standard, and technical specification confirmation.

Q5: Can DIN 81915 chocks be customized?

Manufacturing options can be reviewed according to customer drawings, material requirements, dimensions, coating specifications, and project conditions. Any deviation from the specified standard should be agreed upon before production.
